Contemporary Controls' multi-network BASrouters provide versatile stand-alone routing between BACnet/IP, BACnet Ethernet, and BACnet MS/TP networks. While all models can function as BACnet/IP Broadcast Management Devices (BBMDs) with support for Foreign Device Registration (FDR), each offers unique features tailored to specific networking requirements.
- BASrouter: The BASRT-B is a compact DIN-rail mounted unit that is used for fixed installations.
- BASrouterSX: The BASRTSX-B and BASRTSX-B/P are a high-performance BACnet routers for large buildings that incorporate HTTPS for encrypted webpage communication.
- Portable BASrouter: BASRTP-B is an easy-to-carry and USB-powered unit that is ideal for commissioning and troubleshooting at jobsites.

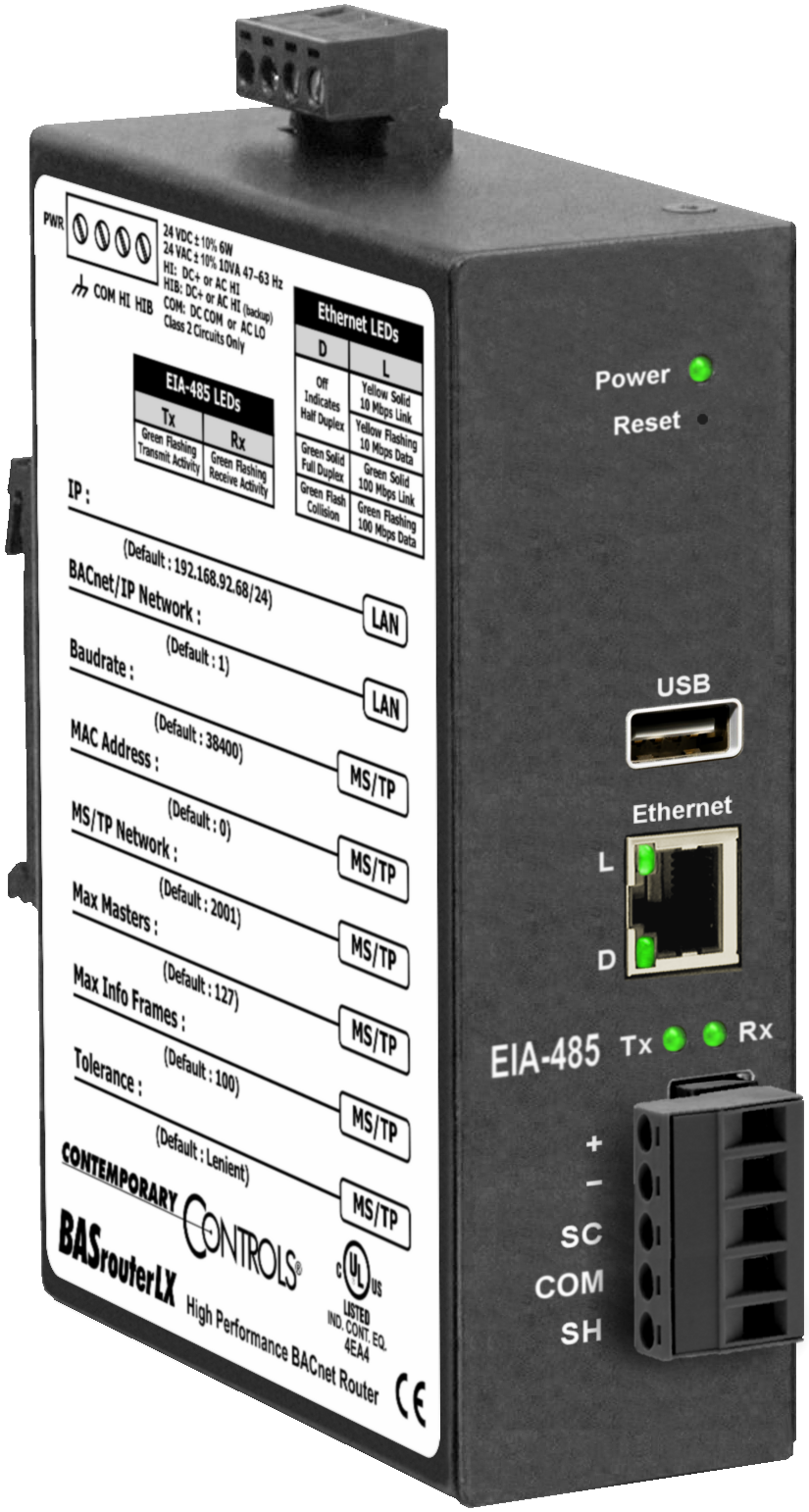

- BASrouterLX: The BASRTLX-B is a high-performance BACnet router for large buildings.
The table below compares the features and capabilities of our BASrouter models to help in the selection of the correct model:
BASrouter |
Portable BASrouter |
BASrouterSX |
BASrouterLX |
|
| model | (BASRT-B) | (BASRTP-B) | (BASRTSX-B or BASRTSX-B/P) |
(BASRTLX-B) |
| # of BBMD Entries | 5 | 5 | 50 | 50 |
| # of FDR | 50 | 50 | 147 | 147 |
| MS/TP Slave Proxy | No | No | Yes | Yes |
| MS/TP Baud Rates | 9600, 19200, 38400, 76800 | 9600, 19200, 38400, 76800 | 9600, 19200, 38400, 57600, 76800, 115200 | 9600, 19200, 38400, 57600, 76800, 115200 |
| # of BACnet Networks | 128 | 128 | 500 | 500 |
| Routing: BACnet/IP, BACnet MS/TP, BACnet Ethernet | Yes | Yes | Yes | Yes |
| HTTPS | No | No | Yes | No |
| Power | 24 VAC/DC | 5 V USB | 24 VAC/DC | 24 VAC/DC |
| Termination and Bias | Internal jumpers | Internal jumpers | External DIP switches | Internal jumpers |
| Installation | DIN-rail mount | Portable | DIN-rail or panel mount | DIN-rail mount |
