Introduction:

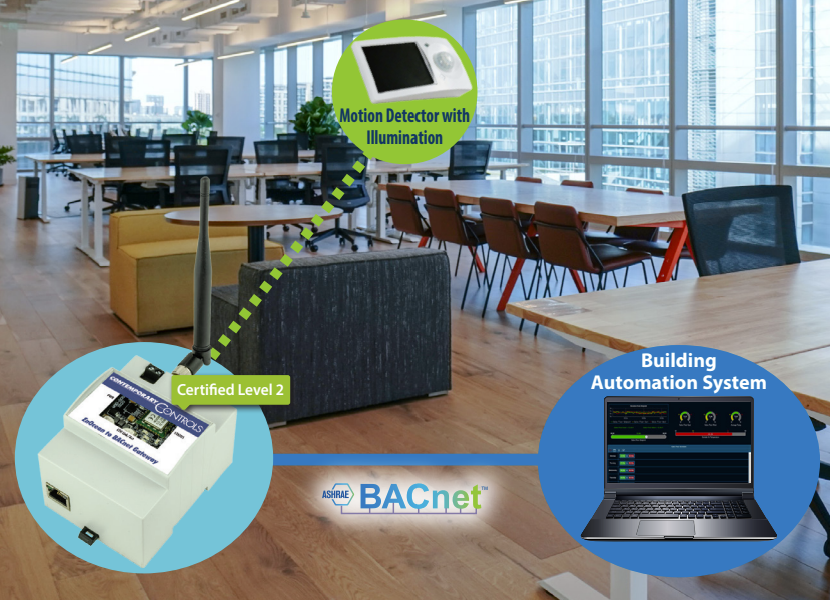

Effective occupancy detection in commercial buildings, hotels, and offices is crucial for energy efficiency, space optimization, and occupant comfort. Traditional detection methods rely on wired sensors with complex installation requirements and limited flexibility. An occupancy detection system that incorporates wireless PIR motion detectors with EnOcean illumination sensors and Contemporary Controls’ EnOcean to BACnet gateways provide a comprehensive, easy-to-implement solution that enhances energy efficiency, improves space utilization, and optimizes building management.
Key Components:
- Wireless PIR Motion Detectors are sophisticated sensors that detect infrared radiation changes caused by human movement within their field of view. These sensors can be ceiling-mounted or wall-mounted depending on the application requirements. Modern PIR sensors feature adjustable sensitivity settings and detection ranges up to 5 meters, making them suitable for various room sizes and configurations.
- Integrated Illumination Sensors work alongside motion detection to measure ambient light levels in the monitored space. This dual-function capability enables intelligent lighting control based on both occupancy and natural light availability, maximizing energy savings while maintaining optimal lighting conditions for occupants.
- EnOcean to BACnet Gateway provides bidirectional communication between EnOcean wireless devices and BACnet/IP networks. This gateway is the critical link that allows building automation supervisors to seamlessly discover and integrate EnOcean devices into existing BACnet systems.
How the System Works:
1. Occupancy Detection: The PIR motion sensors detect when spaces are occupied and transmit this information wirelessly using the EnOcean protocol.
2. Illumination Measurement: Integrated light sensors measure ambient brightness levels, enabling intelligent lighting control based on both occupancy and natural light availability.
3. Energy Management: When unoccupied spaces are detected, the system can automatically adjust HVAC and lighting systems to conserve energy while maintaining standby comfort levels.
4. System Integration: The EnOcean to BACnet gateway translates EnOcean wireless signals into standard BACnet objects, allowing the system to be monitored and controlled through existing building management systems.
5. Space Utilization Analysis: Occupancy data can be collected and analyzed over time to optimize space usage, which is particularly valuable for meeting rooms and flexible office environments.
Wireless occupancy detection based on PIR motion detectors with illumination sensors, integrated through EnOcean to BACnet gateway technology, offers an efficient solution for modern building management. By combining advanced sensing technologies with standardized building automation protocols, this system provides comprehensive occupancy monitoring while improving energy efficiency and enhancing space utilization. The solution stands out for its minimal maintenance requirements, cost-effective implementation, seamless integration capabilities, and exceptional suitability for retrofit applications. As buildings become increasingly smart and connected, this wireless occupancy detection system represents an essential component of modern building management, contributing to sustainability goals while improving operational efficiency without the constraints of traditional wired systems.
Learn more, read application note.
